140W感應式電動機
|
|
|
電機性能參數
|
機種
|
功率(W)
|
電壓(V)
|
頻率(Hz)
|
電流(A)
|
起動轉矩(Kg.cm)
|
額定轉矩(Kg.cm)
|
額定轉速(rpm)
|
|
電容(μF)
|
|
6IK140A-AF
|
140
|
1φ110
|
50
|
2.35
|
8.5
|
11
|
1350
|
連續
|
24
|
|
6IK140GN-AF
|
|
6IK140A-CF
|
140
|
1φ220
|
50
|
1.2
|
8.5
|
11
|
1350
|
連續
|
8
|
|
6IK140GN-CF
|
|
6IK140A-SF
|
140
|
3φ220
|
50
|
1.12
|
25
|
10.8
|
1350
|
連續
|
-
|
|
6IK140GN-SF
|
|
6IK140A-UF
|
140
|
3φ380
|
50
|
0.56
|
25
|
10.8
|
1350
|
連續
|
-
|
|
6IK140GN-UF
|
|
|

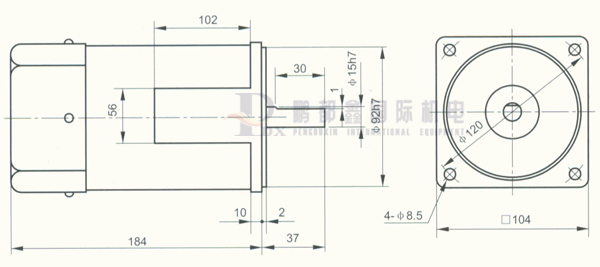

馬達
|
6IK140A-A(C,S,U)F
|
|
|
6IK140GN-A(C,S,U)F
|
|
|
6IK140RA-A(C,S,U)F
|
|
|
6IK140RGN-A(C,S,U)F
|
|
|

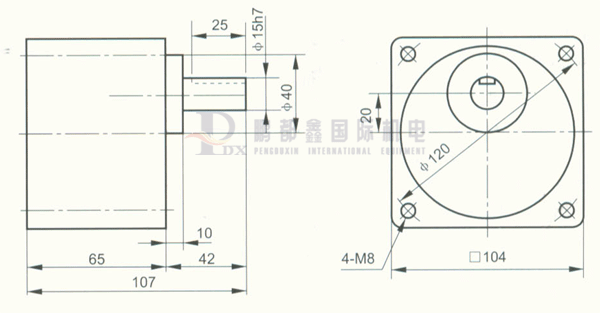

減速機 6GN□K
|
|
|
注：齒軸尺寸：齒軸軸徑φ11.76,模數0.8,螺旋角30°,壓力角20°,軸伸19.8
|
|
|

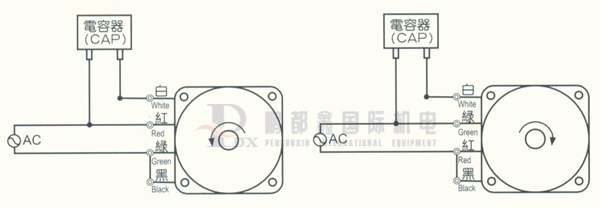

配線圖
單相
|
|
|

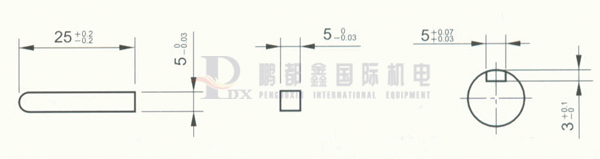

鍵與鍵槽 6GN用
|
|
|
